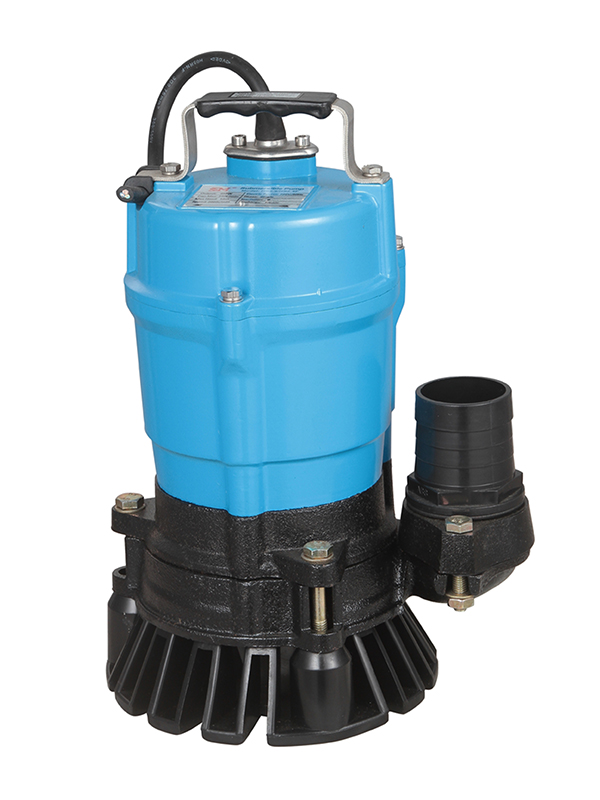

HS2.4
產品描述

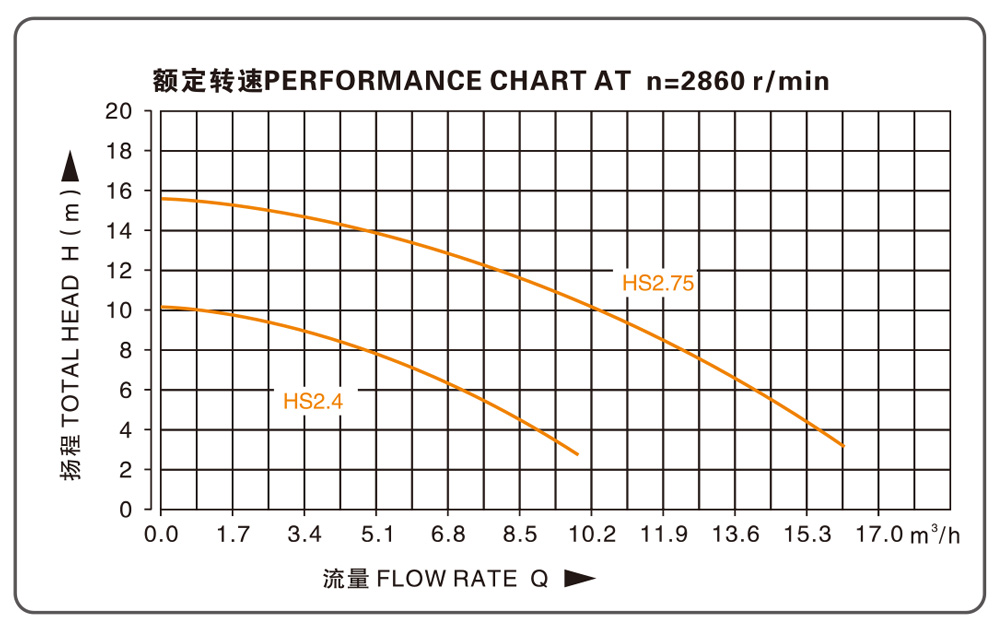

性能曲線 / Performance curve
用途與特點 / Function and Feature
HS型鋁殼潛水泵廣泛適用于農田、養殖、工礦企業和建筑工地等，具有是體積小，重量輕，使用方便等特點。配上浮球開關后隨著液位的變化能實現自動控制啟停。電機內裝有保護器，遇到過熱或過電流時會(huì )自動切斷電源，保證了泵在較惡劣環境下運行的安全性與可靠性。(可配三相電機)
使用條件 / Condition of usag
◎ 電泵潛入水下深度不超過5米;
◎ 水溫不超過40℃;
◎ 水的PH值為6.5-8.5;
◎ 水中固體顆粒直徑不大于0.2毫米。

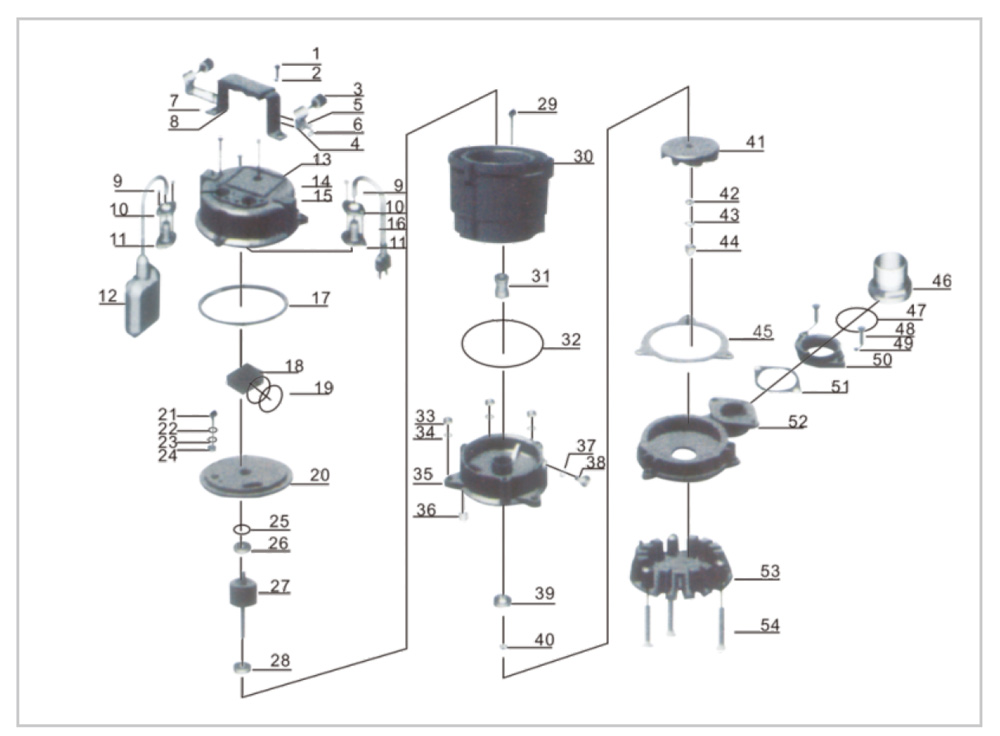

DIAGRAM分解圖 (For the reference of purchasing spare parts供選購配件時參考)
| NO. | DESCRIPTION |
| 1 | Bolt |
| 2 | Washer |
| 3 | Protector |
| 4 | Cable presser |
| 5 | Washer |
| 6 | Screw |
| 7 | Nut |
| 8 | Handle |
| 9 | Screw |
| 10 | Flange |
| 11 | Cable protector |
| 12 | Float switch |
| 13 | Capacitor cover |
| 14 | Bolt |
| 15 | Washer |
| 16 | Cable |
| 17 | Gasket |
| 18 | Capacitor |
| 19 | "O"ring |
| 20 | Upper cover |
| 21 | Screw |
| 22 | Spring washer |
| 23 | Washer |
| 24 | Line protector |
| 25 | Undulated washer |
| 26 | Bearing |
| 27 | Rotor |
| NO. | DESCRIPTION |
| 28 | Bearing |
| 29 | Thermal protector |
| 30 | Stator |
| 31 | Mechanical seal |
| 32 | "O"ring |
| 33 | Nut |
| 34 | Washer |
| 35 | Connection part |
| 36 | Screw |
| 37 | "O"ring |
| 38 | Bolt |
| 39 | Oil seal |
| 40 | Washer |
| 41 | Impeller |
| 42 | Washer |
| 43 | Spring washer |
| 44 | Nut |
| 45 | Gasket |
| 46 | Out-let connector |
| 47 | "O"ring |
| 48 | Bolt |
| 49 | Washer |
| 50 | Flange |
| 51 | Gasket |
| 52 | Pump casing |
| 53 | Base plate |
| 54 | Bolt |
技術參數 / TECHNICAL DATA
| Model 型號 |
Power 功率 (W) |
Outlet Diameter 出水口徑 (mm) |
Voltage 電壓 (V) |
Max. Flow 最大流量 (L/min) |
Max. Head 最高揚程 (m) |
Weight 毛重 (kg) |
Packing 包裝尺寸 (cm) |
| HS2.4(F) | 450 | 50 | 220V | 230 | 12 | 13 | 23x19.5x38 |
型號后加“F”表示裝配浮球開關的水泵
